Factory-Built A²/O + MBBR Rural Sewage Equipment Prepared For Dispatch
This factory-built integrated unit was prepared for rural domestic sewage treatment. Its named biological route combines Anaerobic–Anoxic–Oxic (A²/O) treatment with Moving Bed Biofilm Reactor (MBBR) technology inside a prefabricated enclosure.

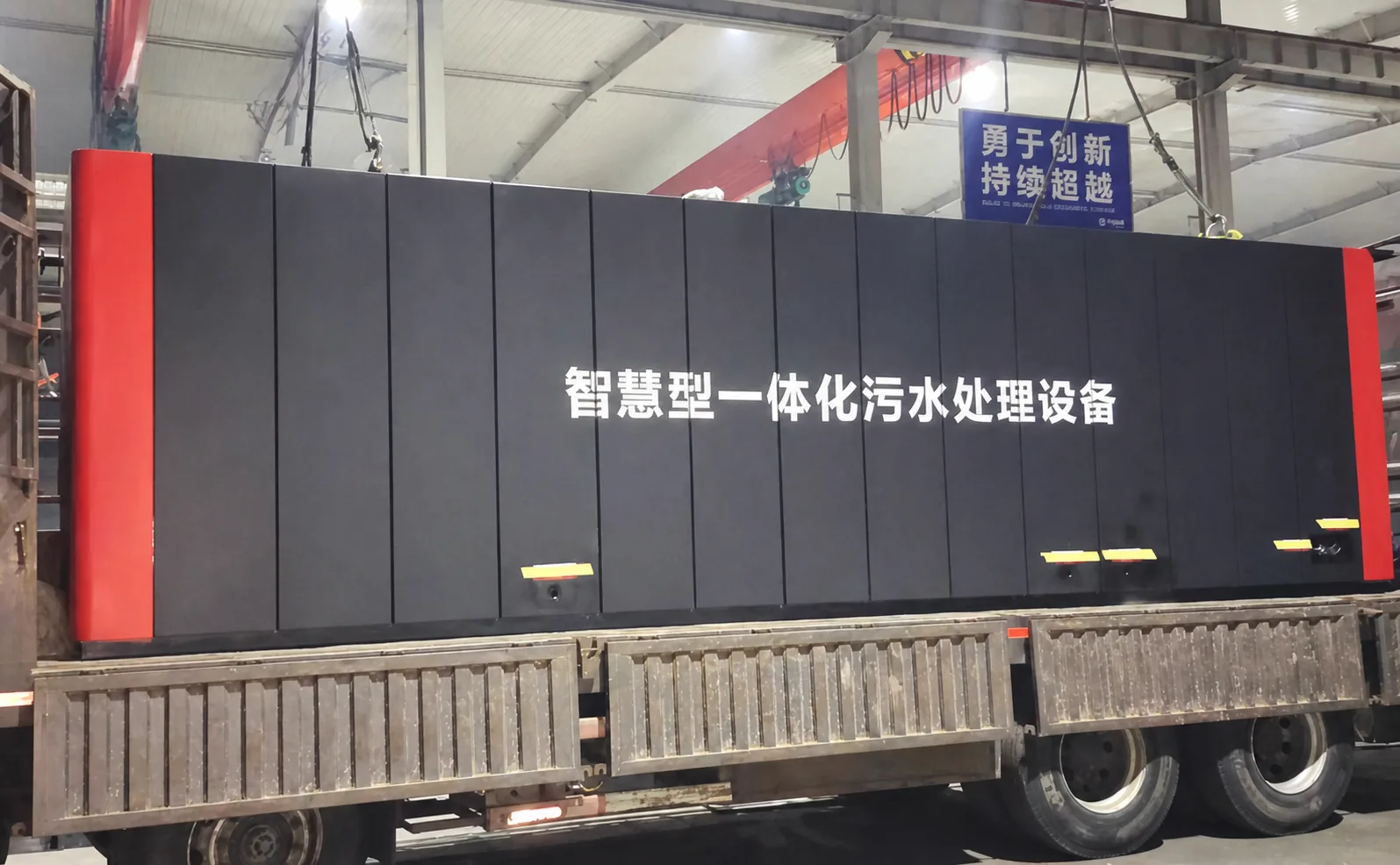

Completed integrated equipment during factory loading
The photograph shows the enclosed treatment body positioned on a truck with lifting points and service panels visible.
Rural Sewage
A²/O + MBBR
Prefabricated
Factory Loading
What Was Prepared For Dispatch
The photographs show one completed enclosed treatment body during factory loading. The unit was prepared for rural domestic sewage treatment with an A²/O + MBBR biological route.
Project At A Glance
| Application | Rural domestic sewage treatment |
|---|---|
| Equipment form | Compact, prefabricated integrated treatment unit |
| Main biological process | Anaerobic–Anoxic–Oxic (A²/O) + Moving Bed Biofilm Reactor (MBBR) |
| Visible equipment | Enclosed treatment body with external access panels and top lifting points |
| Project stage | Factory completed and prepared for dispatch |
What Changes For A New Village
The biological route and integrated equipment form are identified for this reference. A new system still requires pretreatment, recycle, solids separation, disinfection, sludge handling and controls to be set from actual water data and the outlet target.
How A²/O + MBBR Supports Decentralized Sewage Treatment
The named route combines staged anaerobic, anoxic and oxic conditions with carrier-based attached growth. Its final performance depends on the influent load, hydraulic design, oxygen supply, recycle arrangement and solids management.
Staged Biological Conditions
A²/O separates anaerobic, anoxic and oxic functions within one biological framework. Organic-matter and nutrient-removal design still depends on influent carbon, loading, sludge age and recycle conditions.
Carrier-Based Biomass
MBBR media provides protected surface area for attached-growth microorganisms in the biological stage. Carrier type, fill fraction, mixing and aeration are selected from the required load and outlet target.
Factory-Built Integration
A prefabricated enclosure concentrates treatment functions before shipment and reduces the amount of equipment assembly required at a decentralized site.
Factory-Built Integration In The Enclosed Unit
The equipment reference combines a prefabricated enclosure with the named A²/O + MBBR biological route. The photographs also show the external features used for factory handling, transport and equipment access.
Prefabricated Enclosure
The treatment body is enclosed as one factory-built equipment package for transport and later site placement.
A²/O + MBBR Integration
A²/O forms the staged biological framework, while MBBR provides the attached-growth component within the named route.
Access And Lifting Points
Multiple external panels, lifting cables and top lifting points are visible during factory dispatch preparation.
Integrated Equipment During Dispatch Preparation

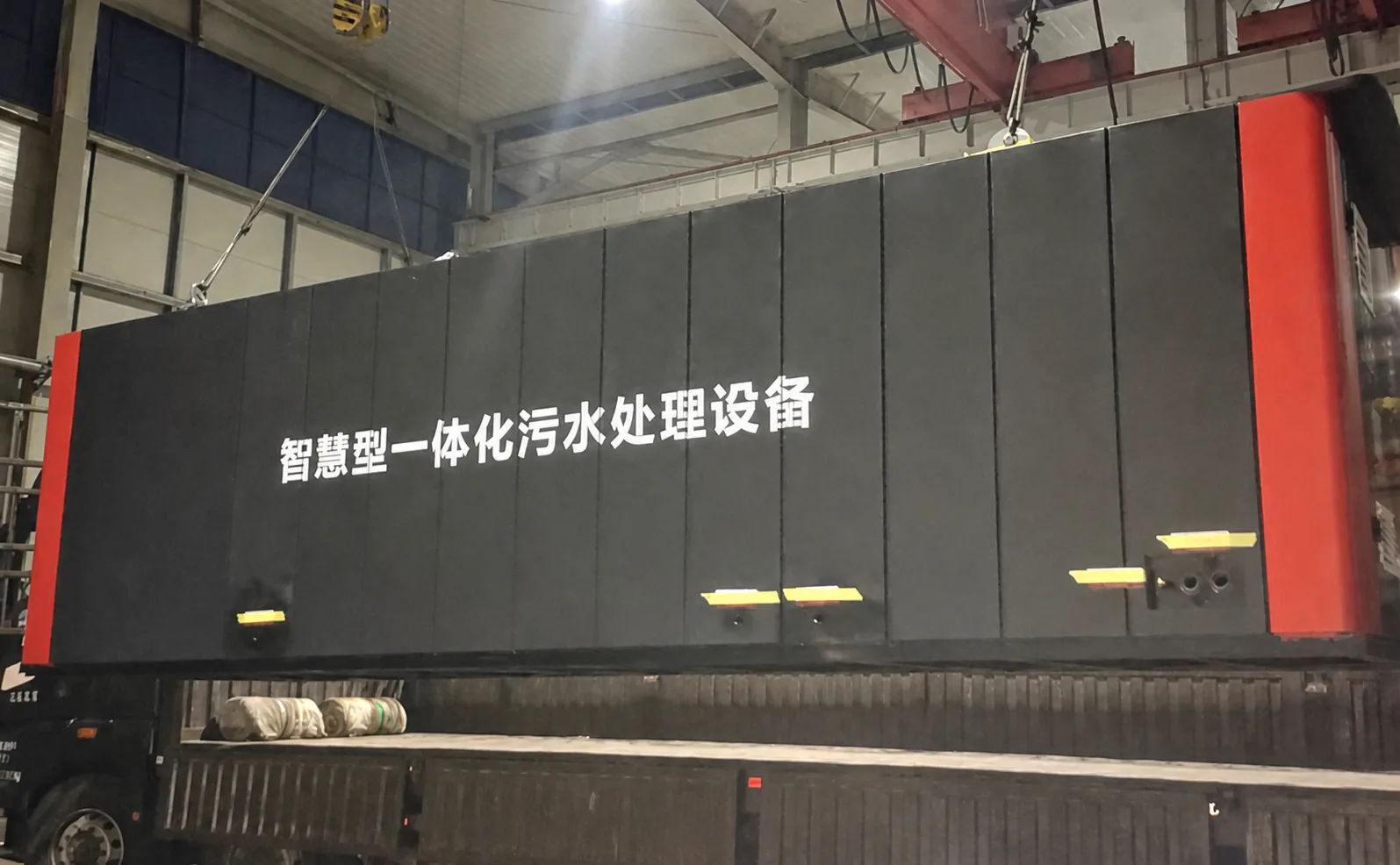

The second view shows the completed enclosure during lifting and truck loading. Transport width, crane access, unloading space, foundation interfaces and final equipment placement must be coordinated for a new site.
Enclosed Unit Positioned For Transport
The equipment body is shown on a transport vehicle, with multiple external panels distributed along the enclosure for equipment access.
What Must Be Defined For A New Rural Sewage System
The photographed reference establishes the integrated equipment form and named biological route. Final configuration for a new project follows the population, water analysis, outlet limits, collection area and site conditions.
| Design Area | Configuration Options | New Project Review |
|---|---|---|
| Biological Design | A²/O framework with an MBBR attached-growth component | Set zone volumes, carrier type and fill fraction, aeration, mixing, hydraulic retention, recycle and sludge-management conditions from the design load. |
| Service And Installation | Single-village or clustered service; above-ground or buried installation | Review population distribution, collection distance, terrain, groundwater, flood level, ventilation, access and maintenance space. |
| Pretreatment And Outlet | Project-specific upstream and downstream stages | Define screening, equalization, solids separation, disinfection and any reuse polishing from the influent profile and applicable outlet limit. |
| Control And O&M | Automated control can be configured for simplified routine operation | Define blower operation, alarms, carrier retention, sludge wasting, inspection access, sampling and water-quality verification. |
| Transport And Site Interface | Prefabricated equipment delivery | Check transport envelope, road access, crane plan, unloading area, foundation, piping, power and installation responsibilities. |
Population, average and peak flow, water analysis, discharge limits and site layout are the starting inputs for final equipment selection.
Integrated Rural Sewage Equipment Prepared For Dispatch
The photographs capture the completed enclosure on a transport vehicle during factory handling. The represented stage is dispatch preparation, not installation, commissioning or operating performance.
Configure A Rural System For New Water And Site Conditions
A new rural project requires the biological route, equipment form and outlet controls to be recalculated from population, water quality, discharge targets and site constraints.
Domestic Sewage Treatment
Review domestic-sewage characteristics, biological routes, outlet targets and project inputs for decentralized treatment.
Review The Domestic Sewage SolutionMBBR Wastewater Treatment Systems
Compare carrier-based biological configurations, treatment roles and selection inputs for decentralized sewage.
Compare MBBR SystemsPackage Wastewater Treatment Plants
Evaluate factory-built treatment equipment for compact sites, distributed service areas and project-specific process routes.
Compare Package PlantsProject Design And Equipment Configuration
Prepare water data, outlet limits, site conditions, logistics and supply scope for a rural sewage treatment review.
Prepare Design InputsQuestions About This Rural Sewage Equipment Reference
This reference covers a factory-built enclosure and an A²/O + MBBR biological route at the dispatch-preparation stage. New-project sizing and outlet controls follow the actual population, wastewater profile and local requirements.
What does this rural sewage equipment reference cover?
It covers a prefabricated integrated treatment enclosure, an A²/O + MBBR biological route and factory loading at the dispatch-preparation stage.
Which treatment technology is used in this rural sewage system?
The named biological route combines Anaerobic–Anoxic–Oxic (A²/O) treatment with Moving Bed Biofilm Reactor (MBBR) technology inside a compact integrated unit.
What is the difference between the A²/O and MBBR roles?
A²/O provides staged anaerobic, anoxic and oxic conditions for organic and nutrient-removal design. MBBR adds suspended carriers that retain attached-growth biomass in the biological stage.
Can the system be installed above ground or underground?
Both above-ground and buried layouts can be evaluated for a new project. Final selection depends on land use, groundwater, excavation, ventilation, flood risk, vehicle access and maintenance requirements.
Can one system serve several villages?
The deployment approach can be village-specific or clustered for multiple villages. The choice depends on population distribution, collection-pipe distances, terrain, peak flow and operator coverage.
What routine operating items should be planned for a new A²/O + MBBR system?
The operating plan should cover blower operation, alarm response, carrier-retention checks, sludge wasting, inspection access, sampling and verification of outlet-water quality.
What data is needed for a similar rural sewage project?
Send permanent and seasonal population, average and peak flow, available COD, BOD₅, TSS, ammonia, TN, TP and pH data, the discharge or reuse target, climate, site layout, utilities and required delivery scope.
